PRODUCTION HALL TRUMPF HETTINGEN BY BARKOW LEIBINGER



01-Production-Hall-Trumpf-Hettingen-by-Barkow-Leibinger

Trumpf GmbH the world largest manufacturer of high tech machine tools will be expanding their existing branch factory near the village of Hettingen in the Swabian Alb.


02-Production-Hall-Trumpf-Hettingen-by-Barkow-Leibinger

Situated in a picturesque valley this will be the second addition undertaken by Barkow Leibinger the first (shops and offices of 1500 sqm.) was done in 2009.

03-Production-Hall-Trumpf-Hettingen-by-Barkow-Leibinger

A new master plan anticipates the construction of new production and assembly in four phases.

04-Production-Hall-Trumpf-Hettingen-by-Barkow-Leibinger

In July 2013 the first of these phases, a new production hall with 3400 sqm, was realized after only 13 months of construction.

05-Production-Hall-Trumpf-Hettingen-by-Barkow-Leibinger

Organized as a simple repetitive shed construction of seven bays the production hall is bracketed by two stories of offices (to the north) and a drive-through loading bay (to the south).

06-Production-Hall-Trumpf-Hettingen-by-Barkow-Leibinger

For the production and assembling of oversized flatbed laser machines a column free and flexible space was required. The bays measure 24m in width and 13m at the highest point of the shed.

07-Production-Hall-Trumpf-Hettingen-by-Barkow-Leibinger

The steel framework of the roof construction allows north-facing skylights within the structural depth; together with the 3m high strip window at ground level they provide daylight for the working areas.

08-Production-Hall-Trumpf-Hettingen-by-Barkow-Leibinger

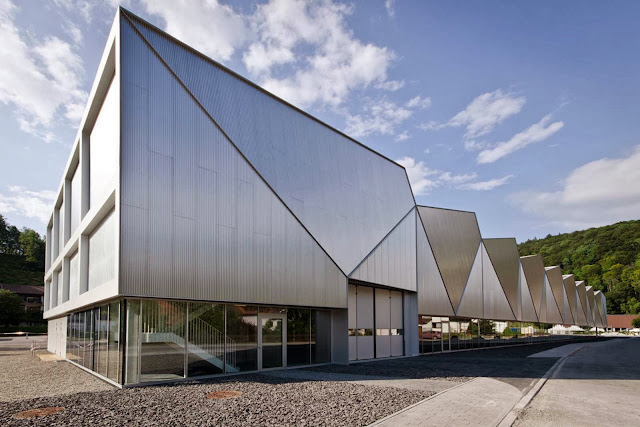

The permanent long façade facing the Lauchert Creek and valley is articulated as a gently folded origami of corrugated metal and glass to scale the factory building to the neighboring singlefamily houses with pitched roofs.

09-Production-Hall-Trumpf-Hettingen-by-Barkow-Leibinger

The office front is integrated into the shed volume but has a mater of fact gridded façade.

10-Production-Hall-Trumpf-Hettingen-by-Barkow-Leibinger

The roof as a 5th facade is planted with local vegetation to better integrate into the scenic valley.

13-Production-Hall-Trumpf-Hettingen-by-Barkow-Leibinger11-Production-Hall-Trumpf-Hettingen-by-Barkow-Leibinger12-Production-Hall-Trumpf-Hettingen-by-Barkow-Leibinger


Location: Hettingen, Germany
Architects: Barkow Leibinger
Architect In Charge: Frank Barkow, Regine Leibinger
Project Team: Tobias Wenz (project architect), Andreas Lang, Hiroki Nakamura, Ina Reinecke, Florian Steinbächer, Ludwig Uphues
Construction Management: Kerler, partner architekt ingenieure
Structural Engineer: IB Breinlinger
Mechanical Engineer: Henne & Walter
Energy Design: Transsolar Energietechnik GmbH
Electrical Engineering: Müller & Bleher
Building Physics: Horstmann, Berger
Landscape Architect: Capatti Staubach
Underground Engineering: Ingenieurbüro Beck
Area: 3,400 sqm
Year: 2013
Client: TRUMPF GmbH & Co. KG
Photographs: Ina Reinecke
